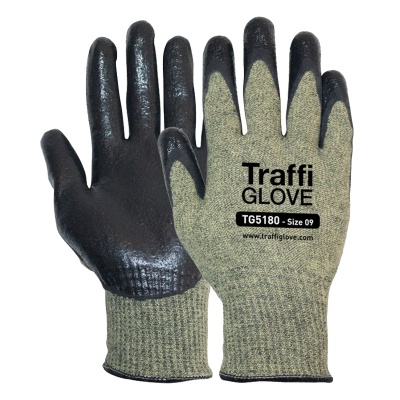

Traffiglove TG5180 Arc Flash Work Gloves
When working with electrical equipment, having the proper protection is absolutely vital. Every arc flash incident carries the risks of serious injury to the worker.
The Traffiglove TG5180 Arc Flash Work Gloves are specially designed to protect the wearer from arc flash. With an aramid-based liner and an elastic neoprene palm coating, they provide superb cut and heat resistance as well.
Key Information
- Glove Code: TG5180
- EN 388:2003 Rating: 3543
- EN 407 Rating: 42322
- EN 420
- Size Range: 6 - 11
- Supplied as a pair
Resistance of the Traffiglove TG5180 Arc Flash Protection Gloves
The Traffiglove TG5180 have been tested in accordance with European standards to ensure high levels of performance. Please find the results below:
EN 388
| Property | Resistance Level |
| Abrasion Resistance | Level 3 |
| Cut Resistance | N/A |
| Tear Resistance | Level 4 |
| Puncture Resistance | Level 3 |
| ISP Cut Resistance | Level D |
EN 407
| Property | Resistance Level |
| Burning Resistance | Level 4 |
| Contact Heat Resistance | Level 2 |
| Convective Heat Resistance | Level 3 |
| Radiant Heat Resistance | Level 2 |
| Molten Metal Resistance (Splashes) | Level 2 |
| Molten Metal Resistance (Large Quantities) | N/A |
The Traffiglove TG5180 have an arc flash rating of 8.6 cal/cm².
Uses of the Traffiglove TG5180 Arc Flash Resistant Work Gloves
With a highly protective design, the Traffiglove TG5180 are suitable for a variety of high-risk environments. Typical applications include:
- Automotive
- Electrical work
- Fabrication
- Metalwork
- Utilities
- Waste and recycling
The Traffiglove TG5180 are designated Category II gloves, meaning they are suitable for medium-duty applications and intermediate levels of risk.
Key Features of the Traffiglove TG5180 Heat Resistant Gloves
- Cut-resistant work gloves with arc flash protection
- Excellent dry and wet grip
- Great oil, grease, glue and chemical resistance
- Dexterity, touch and elasticity similar to natural rubber
Sizing of the Traffiglove TG5180 Cut Resistant Work Gloves
The Traffiglove TG5180 are available in six different sizes, making them suitable for most users. Please measure the circumference of your hand around the knuckles (excluding the thumb) with your hand open and your fingers together, and the length of your hand from the tip of your middle finger to your wrist.
| Size | Circumference (mm) | Length (mm) |
| Size 6 | 152mm | 160mm |
| Size 7 | 178mm | 171mm |
| Size 8 | 203mm | 182mm |
| Size 9 | 229mm | 192mm |
| Size 10 | 254mm | 204mm |
| Size 11 | 279mm | 215mm |
Materials of the Traffiglove TG5180 Arc Flash Work Gloves
- Liner Material: Aramid
- Coating Material: Neoprene
